Specification Sheet

WC

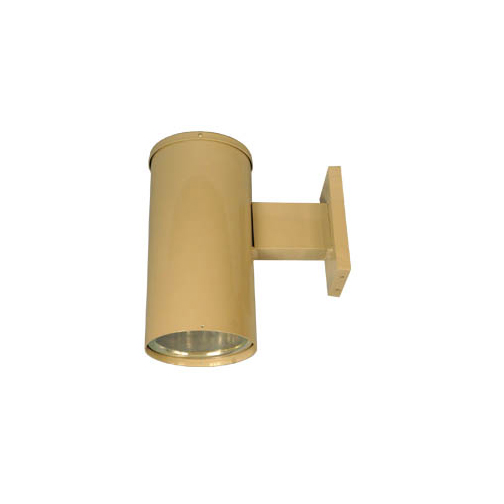

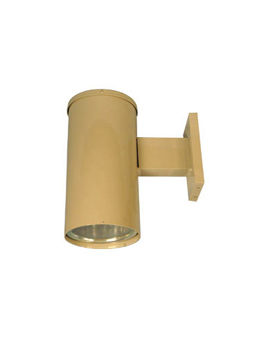

Product Details
Housing   8” diameter extruded aluminum.
Lens   3/16” thick clear tempered glass.
Reflector   Specular aluminum.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Mounting   2”x 4” extruded aluminum arm, with cast aluminum wall plate, 3/8” stem with swivel canopy, or surface ceiling mounted.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
6. Option
     BL - Baffle without lens
     FS - Fuse
