PACIFIC LIGHTING & STANDARDS CO
Traditional | Decorative | Contemporary | Architectural | Low Pressure Sodium | Wall and Ceilings | Bollards | Poles | Base Covers | Arms


Downloads
Specification Sheet

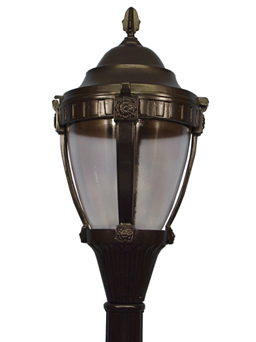

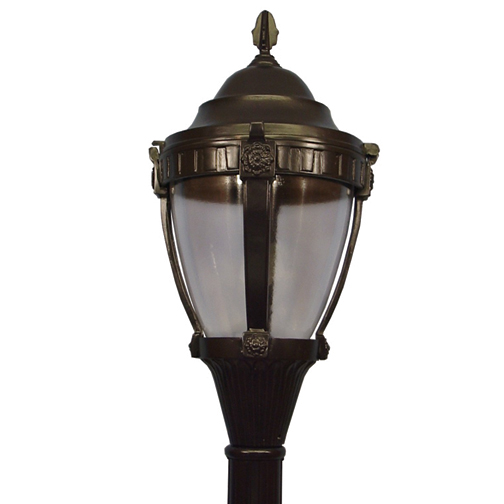

LD

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness ballast compartment,  decorative ring, vertical strut and top hood.
Lens   Clear injection molded polycarbonate.
Reflector   Segmented specular aluminum.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information

1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Light Distribution
     3 and 5 segmented
     GR3 - Type 3 Glass Refractor
     GR5 - Type 5 Glass Refractor
     LR - Louver Refractor
6. Mounting & Arm Style
7. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
8. Options
     FS - Fuse
     PC - Photo Cell

Variant Options
