Specification Sheet

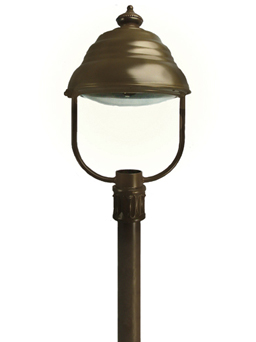

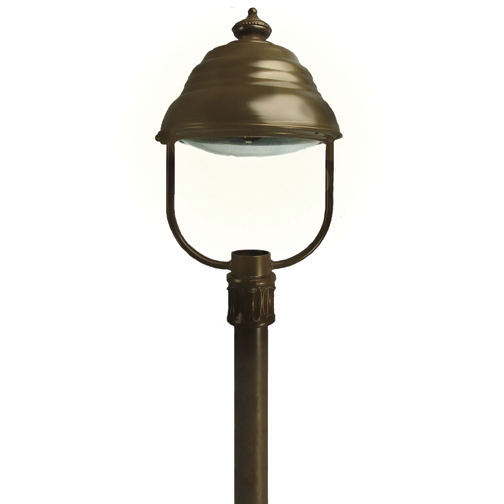

VK

Product Details
Housing   1/8” thick spun aluminum hood with (2) 3/4” O.D. extruded aluminum supports and cast aluminum pole fitter.
Lens   Flat or Convex tempered glass.
Electrical   All electrical components are UL approved.
Reflector   Specular Alzak, available on type 1, 2, 3 FT and 5 distribution.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Light Distribution
     1, 2, 3, FT and 5
6. Lens
     FG - Flat Glass
     CG - Convex Glass
7. Mounting Style
8. Arm Style
9. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
10. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
