Specification Sheet

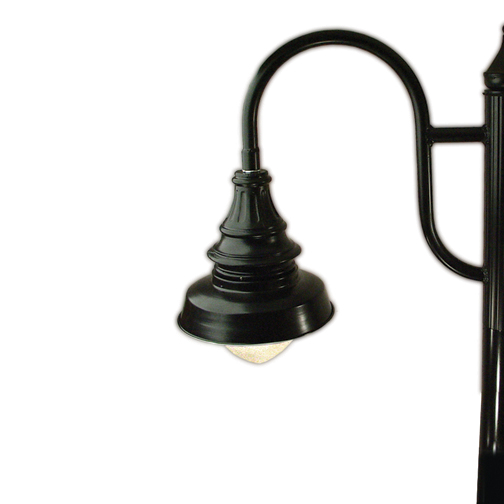

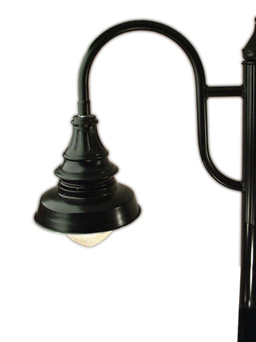

VJ

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy .188” min. wall thickness ballast compartment, and heavy gauge spun aluminum hood.
Lens   Flat tempered glass, convex tempered glass, textured drop lens or refractor sealed into cast aluminum frame.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Reflector   Segmented specular Alzak, available on type 3 and 5 light distribution.
Arms   Extruded aluminum
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Light Distribution
     3 and 5
6. Lens
     FG - Flat Glass
     CG - Convex Glass
     TD - Texture Drop
     RF - Refractor
7. Mounting Style
8. Arm Style
9. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
10. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
