Specification Sheet

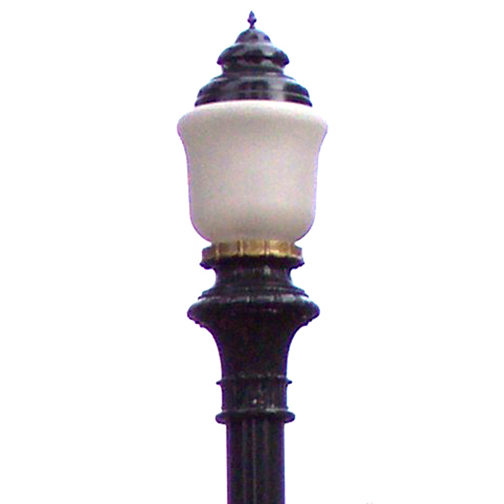

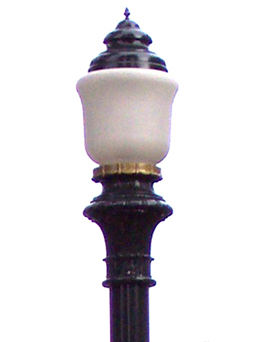

Product Details

Housing		Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness.

Acorn		UV stabilized frosted textured polycarbonate. Clear textured polycarbonate acorn available, consult factory.

Reflector		Segmented specular aluminum.

Electrical		All electrical components are UL approved.

Ballast		High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.

LED Engine		All LED light boards and drivers are separate and removable for easy maintenance and replacement

Finish		Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information

1. Model Number
2. Wattage
3. Lamp Type
    H - Metal Halide
    S - High Pressure Sodium
    PS - Pulse Start
    CF - Compact Fluorescent*
    LED - Light-emitting diode
    IND - Induction
4. Voltage
    120, 208, 240, 277, 480 and
    MT (Multi Tap) - 120, 208, 240, 277
5. Optics
    GR3 - Type 3 Glass Refractor
    GR5 - Type 5 Glass Refractor
    LR - Louver Reflector
6. Mounting & Arm Style
7. Finish
    BK - Black
    BZ - Bronze
    GR - Green
    VG - Verde Green
    ( Other color upon request)
8. Options
    HS - House Shield
    FS - Fuse
    PC - Photo Cell
