Downloads
Specification Sheet

CA

Product Details

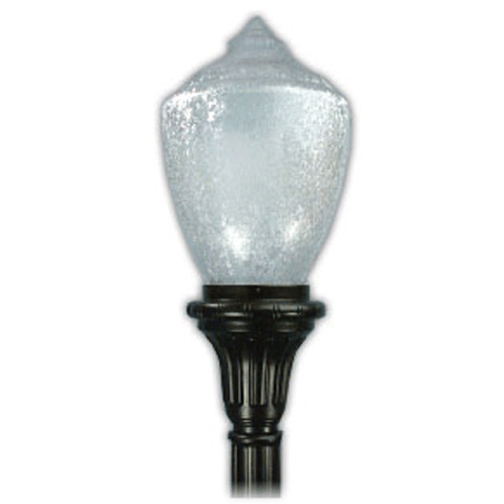

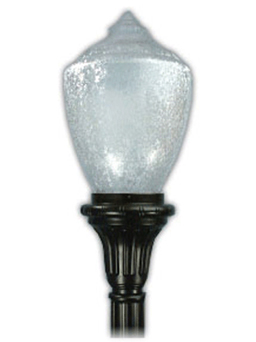

Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness.
Acorn   UV stabilized clear textured polycarbonate or prismatic type 3 and 5 light distribution. Available; consult factory.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information

1. Model Number
2. Wattage
3. Lamp Type
    H - Metal Halide
    S - High Pressure Sodium
    PS - Pulse Start
    CF - Compact Fluorescent*
    LED - Light-emitting diode
    IND - Induction
4. Voltage
    120, 208, 240, 277, 480 and
    MT (Multi Tap) - 120, 208, 240, 277
5. Optics
    GR3 - Type 3 Glass Refractor
    GR5 - Type 5 Glass Refractor
    LR - Louver Reflector
6. Mounting
7. Arm Style
8. Finish
    BK - Black
    BZ - Bronze
    GR - Green
    VG - Verde Green
    ( Other color upon request)
9. Options
    HS - House Shield
    FS - Fuse
    PC - Photo Cell


Variant Options
