Specification Sheet

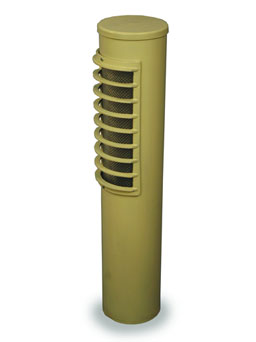

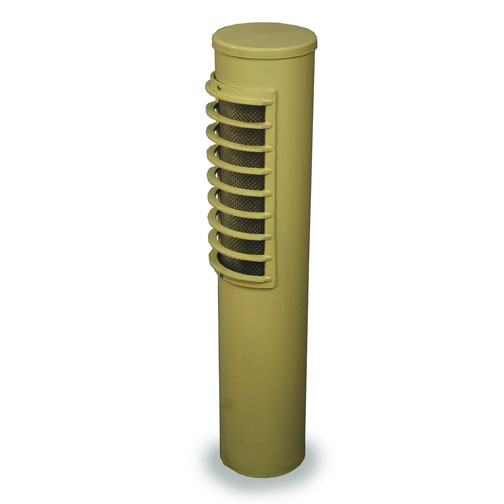

BO

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness lens frame and .125” thickness extruded aluminum bottom section.
Lens   Impact resistant acrylic.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Anchor Bolts   (3) 1/2”x 12”x 2” galvanized on 5 1/2” bolt circle.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     IN - Incandescent
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Lens
     WL - White Lens
     PL - Prismatic Lens
6. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
7. Option
     FS - Fuse
