Specification Sheet

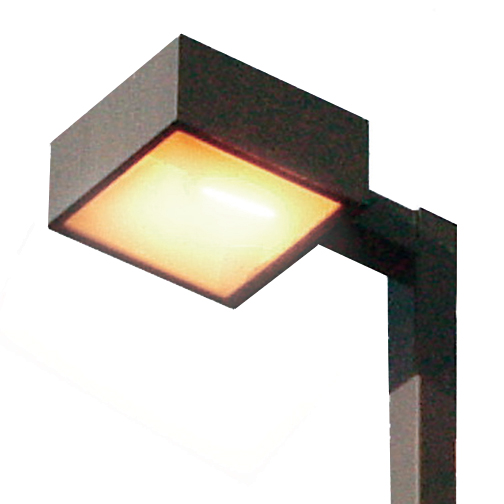

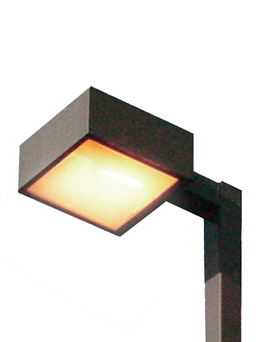

SB

Product Details
Housing   Heavy gauge die formed welded aluminum internally sealed for weather proofing. Closed cell neoprene foam gasket is applied between lens frame and housing.
Lens   Flat tempered glass or  convex tempered glass sealed into cast aluminum frame.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Reflector   Segmented specular Alzak, available on type 1, 2, 3, FT and 5 light distribution.
Arms   Extruded or/and cast aluminum.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Light Distribution
     1, 2, 3, FT and 5
6. Lens
     FG - Flat Glass
     CG - Convex Glass
7. Mounting
8. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
9. Options
     RPC - Receptacle and Photo Cell
     HS - House Shield
     FS - Fuse
     PC - Photo Cell
