Specification Sheet

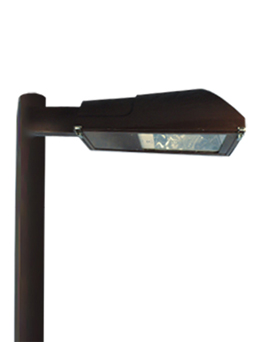

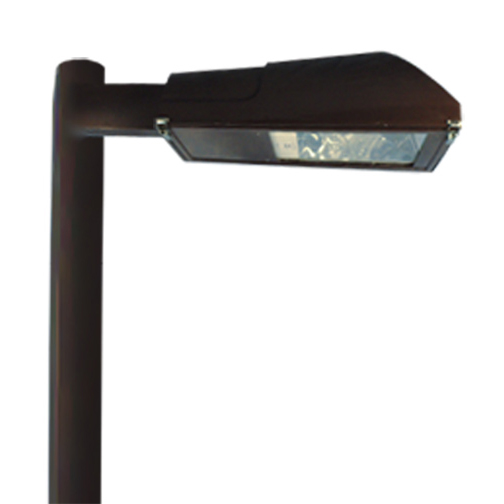

LL

Product Details
Housing   .188 thick cast aluminum. Closed cell neoprene foam gasket is applied between lens frame and housing.
Lens   .188 thick clear tempered glass, sealed into mill finish extruded aluminum frame with silicone. Lens frame is hinged and secured with two stainless steel quarter turn fasteners.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Reflector   Specular aluminum available on type 1, 2, 3, FT and 5 light distribution.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Arms   Extruded or/and cast aluminum.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Light Distribution
     1, 2, 3, FT and 5
6. Mounting
7. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
8. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
