PACIFIC LIGHTING & STANDARDS CO
Test | Traditional | Decorative | Contemporary | Architectural | Low Pressure Sodium | Wall and Ceilings | Bollards | Poles | Base Covers | Arms


Downloads
Specification Sheet

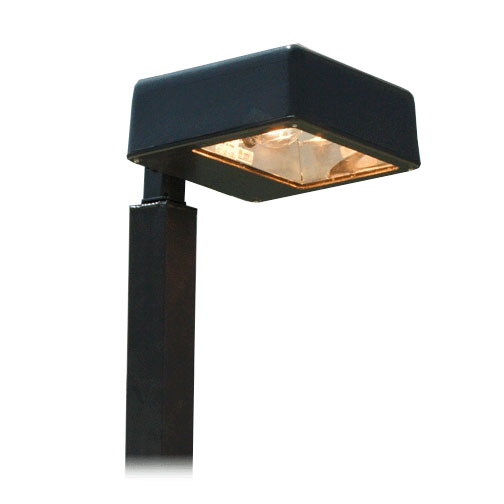

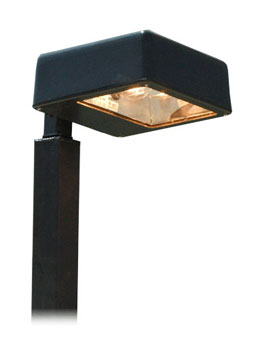

LAA, LAB & LAK

Product Details
Housing   Die cast aluminum. Closed cell neoprene foam gasket is applied between lens frame and housing.
Lens   .188 thick clear tempered glass. Lens frame is hinged and secured with two stainless steel fasteners.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Reflector   Specular aluminum available on type 3, FT and VS light distribution.
LED Engine   All LED light boards and drivers are separate and removable for easy maintenance and replacement.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Light Distribution
     3, FT and VS
6. Mounting
7. Finish
     BZ - Bronze
     ( Other color upon request)
8. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell

Variant Options
