Specification Sheet

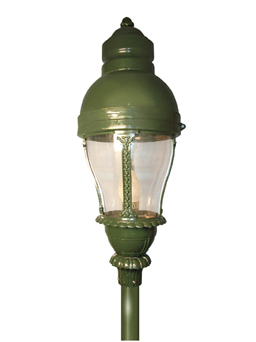

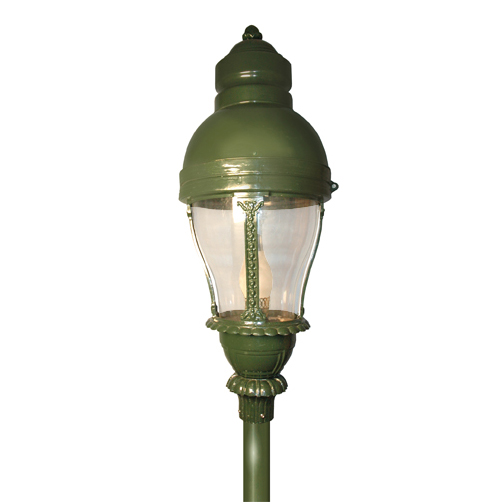

RT

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness ballast compartment, decorative ring, vertical struts and top hood.
Lens   Clear injection Molded Ploycarbonate.
Reflector   Segmented specular aluminum.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information

1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Optics
     GR3 - Type 3 Glass Refractor
     GR5 - Type 5 Glass Refractor
     GC - Glass Chimney
     CR - Corn Refractor
     RF3 - Type 3 Specular Refractor
     RF5 - Type 5 Specular Refractor
6. Mounting
7. Arm Style
8. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
9. Options
     HS - House Shield
     FS - Fuse
     PC - Photo Cell
     RCP - Receptade and Photo Control


Variant Options
