Specification Sheet

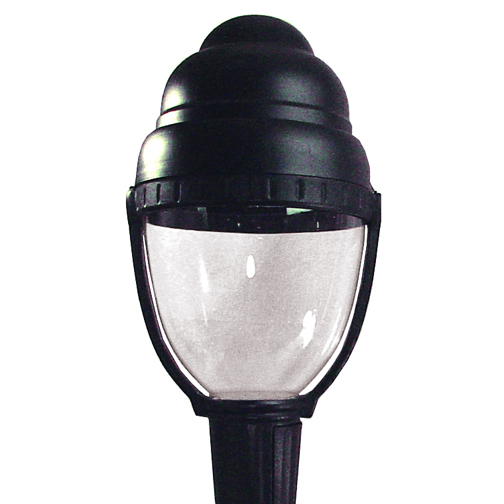

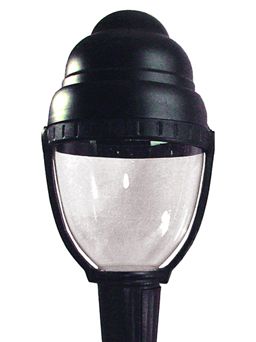

MCP

Product Details
Housing   Corrosion resistant, cast A356 aluminum alloy, .188” min. wall thickness ballast compartment and heavy gauge spun aluminum top.
Lens   Clear injection molded polycarbonate.
Reflector   Specular aluminum type 3 or 5 light distribution.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     PS - Pulse Start
     CF - Compact Fluorescent*
     LED - Light-emitting diode
     IND - Induction
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Light Distribution
     3 and 5
     GR3 - Type 3 Glass Refractor
     GR5 - Type 5 Glass Refractor
     LR - Louver Reflector
6. Mounting & Arm Style
7. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
8. Options
     FS - Fuse
     PC - Photo Cell

Variant Options
