Specification Sheet

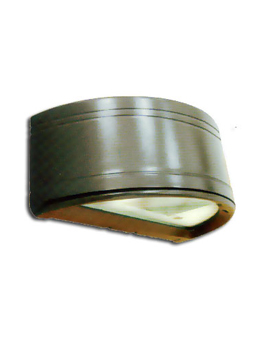

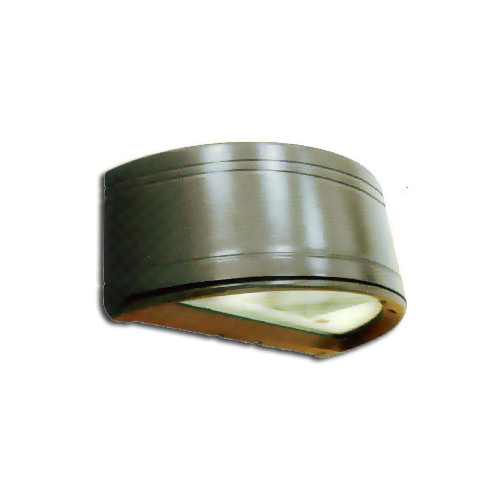

WO

Product Details
Housing   3/16” Thick corrosion resistant cast aluminum.
Lens   Clear tempered glass.
Reflector   Specular aluminum, forward throw light distribution.
Ballast   Ballast is high power factor mounted on aluminum tray.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     H - Metal Halide
     S - High Pressure Sodium
     CF - Compact Fluorescent*
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Lens
     CP - Clear Polycarbonate
     TG - Clear Tempered Glass
     MP - Micro Prism Tempered Glass
6. Optics
     DN - 100% Down Light
     UP - 100% Up Light
     UD - 50% Up, 50% Down Light
     LR - 50% Left, 50% Right Light
7. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
8. Option
     FS - Fuse
     PC - Photo Cell
