Specification Sheet

WS

Product Details

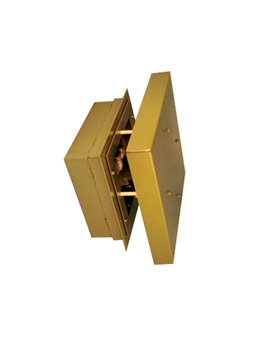

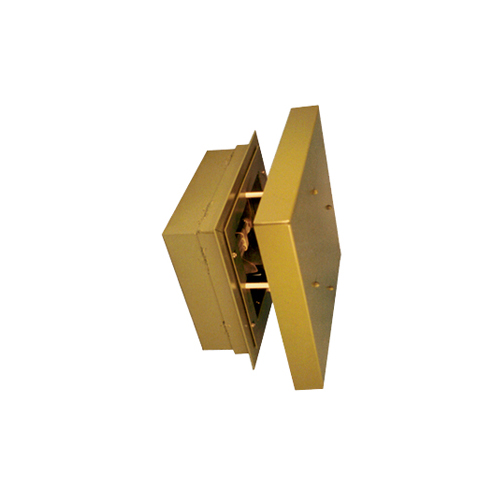

Recessed Housing   Heavy gauge die-formed welded aluminum.
Front Cover   Heavy gauge die-formed welded aluminum.
Lens   3/16” thick clear tempered glass.
Reflector   Specular aluminum.
Electrical   All electrical components are UL approved.
Ballast   High power factor - 20°C starting temperature. The ballast is removable as a unit for easy maintenance.
Finish   Polyester powder fuse coating is standard; other finishes are available upon request.

Ordering Information
1. Model Number
2. Wattage
3. Lamp Type
     I - Incandescent
     H - Metal Halide
     S - High Pressure Sodium
     CF - Compact Fluorescent*
4. Voltage
     120, 208, 240, 277, 480 and
     MT (Multi Tap) - 120, 208, 240, 277
5. Finish
     BK - Black
     BZ - Bronze
     GR - Green
     VG - Verde Green
     ( Other color upon request)
6. Option
     FS - Fuse
     PC - Photo Cell
